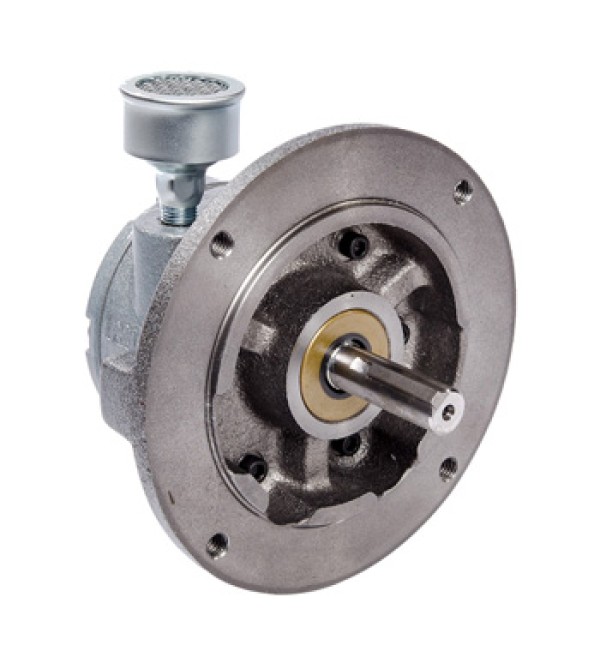

The compact and portable 4AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application.
Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor.
In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.
Click here to download product sheet
| Air Motor Specification |
| Family / Series |
4AM |
| Power |
1.7 hp (1.3 kW) |
| Max Speed |
3000 rpm |
| Max Air Consumption |
78 cfm (132.5 m3/h) |
| Max Torque |
56.0 lb-in (6.3 Nm) |
| Torque @ Max Speed |
36.0 lb-in (4.1 Nm) |
| Weight |
5.0 kg |
| Rotation |
Reversible |
| Thermal Protection |
No |
| Vanes |
4 |
| Mounting |
Flange |
| Regulatory Approval |
CE, ATEX |
| Service Kit |
| Service Kit |
Part No. K206A |
